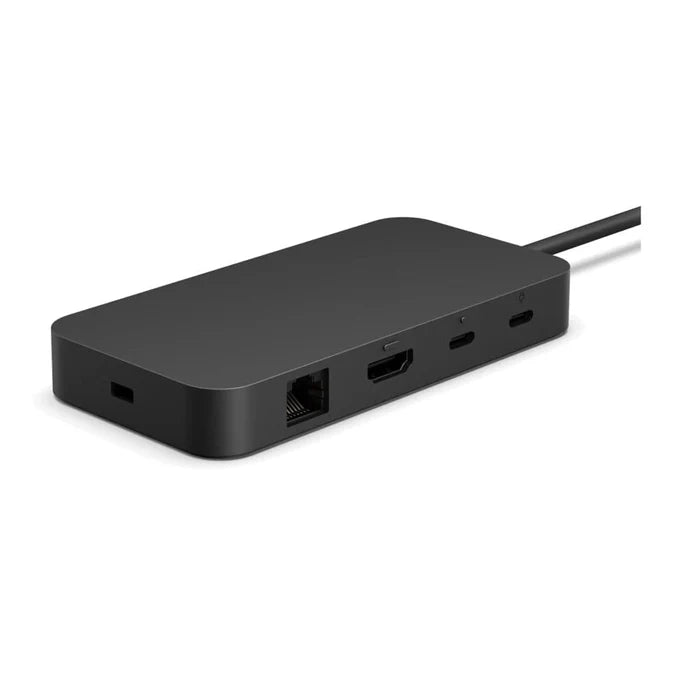

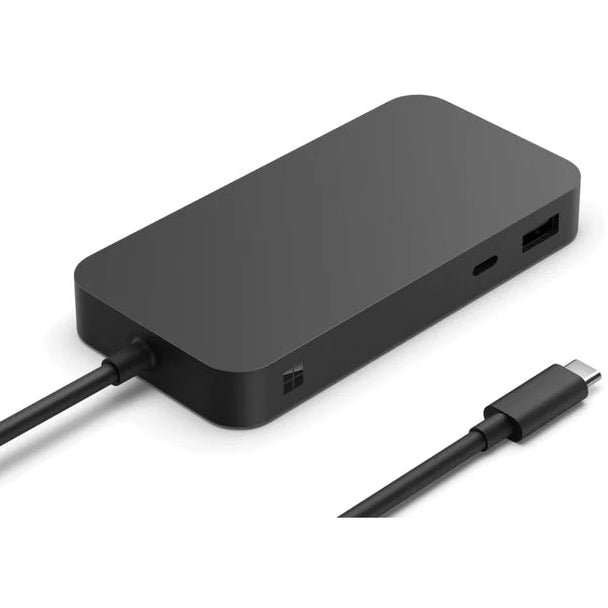

Microsoft Surface USB 4 Dock, Black

Microsoft Surface USB4 Dock EP2-20012

Features

Boost your productivity

The charge you need

Charge your Surface device and accessories, keeping them powered all day, with up to 65 W of power passthrough.

Get work done faster

Enjoy high-speed data transfers—four times faster than USB-C 3.2—thanks to Surface USB4 Dock's speeds of up to 40 Gbps.

More ports for more accessories

Connect to all your essential accessories via two USB-C, USB-A, HDMI, and Ethernet ports.

Expand your setup with multiple monitors

Extend or duplicate your screen by connecting your USB4/Thunderbolt 4 device to two 4k monitors at 60 Hertz via USB-C or HDMI 2.1 ports, or a single 8k monitor at 30 Hz via USB-C port.

Effortless versatility

Sleek, compact design

Keep your desk neat and organized thanks to Surface USB4 Dock’s compact design.

Connect all your devices

Surface USB4 Dock is compatible with USB-C and USB4/Thunderbolt 4 devices.

Tactile port indicators for inclusive design

Raised tactile indicators help you identify ports, with more frequently used ports positioned in the front for easy access.

Lock into place and stay connected

The security lock port allows you to physically secure the docking station in place and keep your device and accessories connected.

Technical Specification

Manageability for supported host devices

• Media Access Control (MAC) address passthrough
• Firmware update through Windows Update and Surface app
• Wake on LAN
• PXE Boot
• To learn more about managing these features, see Surface USB4 Dock overview.

Dimensions: 120mm x 60mm x 15mm

Weight: 206 g

Warranty: 1-year Carry-in

Connections

• 100W USB-C Power supply (up to 65W passthrough). (100W PSU in-box not sold separately).
• USB-C/USB4 left-oriented captive cable (80 cm) with dual LED indicator lights that confirm your Surface is docked and charging.
• 1x Front-facing USB-A (USB 3.2 Gen 2, up to 10 Gb/s, 7.5W).
• 1x Front-facing USB-C (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5W) USB4 supports: Charging, Dual display, up to 40Gb/s data transfer.
• 1x Rear-facing USB-C (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5W)
• 1x Rear facing HDMI 2.1.
• 1x Rear-facing USB-C for PSU only.
• 1x Ethernet (1Gbit/s)
• Security lock support (Kensington compatible)

What’s in the box

• Surface USB4 Dock
• 100W USB-C Power Supply

Compatibility

Surface USB4 Dock is designed to work with Surface Devices and compatible with any USB-C and USB4/Thunderbolt 4 device. For more details on USB-C charging compatibility please visit: https://support.microsoft.com/surface/usb-c-and-fast-charging-for-surface-d320ab19-e4ed-c36d-7458-7d7aec69d34a

• Surface Pro for Business, Copilot+ PC | Intel
• Surface Laptop for Business, Copilot+ PC | Intel
• Surface Pro for Business, Copilot+ PC | Snapdragon
• Surface Laptop for Business, Copilot+ PC | Snapdragon
• Surface Pro 10 for Business
• Surface Laptop 6 for Business
• Surface Laptop 5 for Business
• Surface Pro 8 for Business
• Surface Pro 9 for Business (Intel/Wi-Fi)

The USB4 supports two 4k external displays up to 60hz (when supported by device and display).

Compatible with devices with USB-C port: https://support.microsoft.com/surface/identify-your-surface-dock-and-features-591c07f4-2784-24cf-6445-6fa059237461
